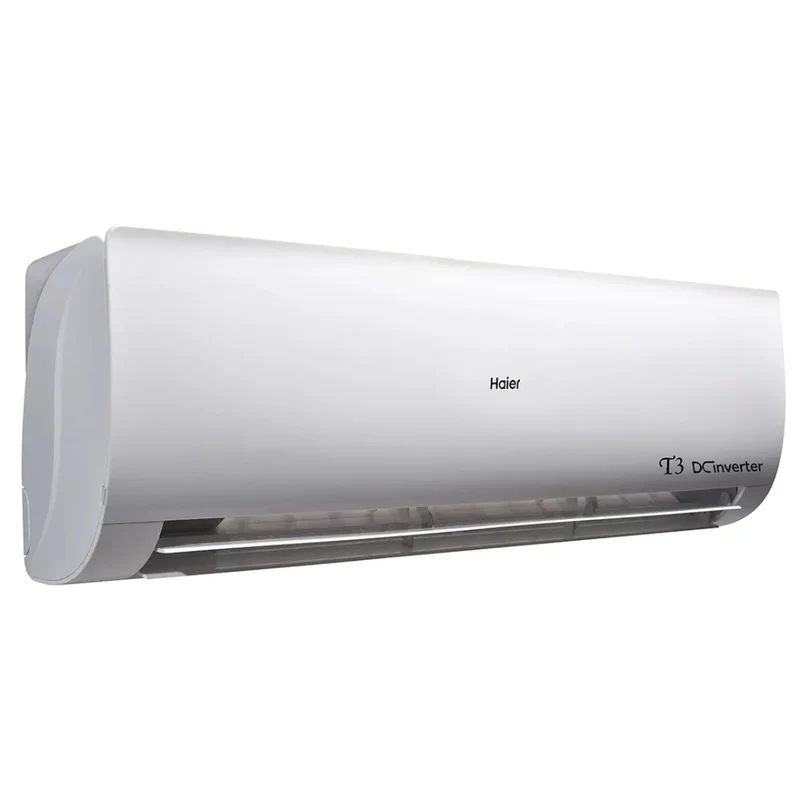

Haier Thunder Inverter (Real T3) | HSU-20HFTEX (OW)

The Haier HSU-20HFTEX T3 Plus is engineered for demanding summer conditions, with a powerful T3 compressor that maintains full cooling capacity at temperatures up to 53°C. Its system is designed for stable operation in ambient temperatures as high as 70°C, making it suitable for extremely hot environments.

The AC provides 22,000 BTU cooling capacity and 23,000 BTU heating capacity, with an airflow of 1,150 m³/h. It uses R32 refrigerant and a variable-speed DC inverter compressor for responsive temperature control and efficient operation.

The T3 Plus series also features 15-second instant cooling and 30-second instant heating, PLC technology for improved PCB heat dissipation, Wi-Fi connectivity, Self-Clean, Turbo Function, ECO Mode, and automatic vertical and horizontal airflow adjustment.

Key Specifications

• Model: HSU-20HFTEX/023WDC(OW)-T3 Plus
• Capacity: 1.5 Ton
• Type: DC Inverter Split AC
• Technology: T3 Plus Inverter
• Color: Ocean White
• Cooling Capacity: 22,000 BTU
• Heating Capacity: 23,000 BTU
• Cooling Power Input: 0.52–1.85 kW
• Cooling Running Current: 2.3–8.1 A
• Heating Power Input: 0.54–1.90 kW
• Heating Running Current: 2.4–8.3 A
• Airflow: 1,150 m³/h
• Refrigerant: R32
• Refrigerant Charge: 1,200 g
• Power Supply: 1 Phase, 230V, 50Hz
• T3 Full-BTU Cooling: Up to 53°C
• Stable Operation: Up to 70°C
• Instant Cooling: 15 seconds
• Instant Heating: 30 seconds
• Wi-Fi: Yes
• Self-Clean: Yes
• Turbo Function: Yes
• ECO Mode: Yes
• Vertical Auto Swing: Yes
• Horizontal Auto Swing: Yes
• Anti-Corrosion: Yes
• UV Air Purification: No
• Indoor Unit Dimensions: 1015 × 325 × 225 mm
• Outdoor Unit Dimensions: 820 × 310 × 630 mm
• Indoor Net Weight: 14.4 kg
• Outdoor Net Weight: 37.5 kg
• Compressor Warranty: 10 Years
• All Parts Warranty: 5 Years
